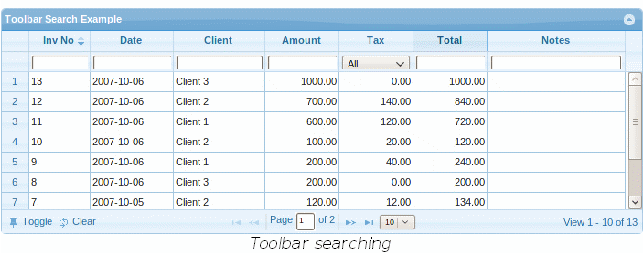

This method construct searching creating input elements just below the header elements of the grid. When the header elements are re sized the input search elements are also re sized according to the new width.

By default this feature is disabled. To enable the fature it is needed to set the toolbarfilter option to true.

<?php
...
// Create the jqGrid instance
$grid = new jqGridRender($conn);
...
$grid->toolbarfilter = true;
$grid->renderGrid(...);
?>

To change a option(s) (listed below) in toolbar filter a setFilterOptions method should be used. By default the search is performed when the user type the search word and press Enter. If we want to change this behaviour -i.e perform immediate search we can do this.

<?php
...
// Create the jqGrid instance
$grid = new jqGridRender($conn);
...
$grid->toolbarfilter = true;
$grid->setFilterOptions(array("searchOnEnter"=>false));
$grid->renderGrid(...);
?>

The options in filterToolbar method are:

Option

type

Description

Default

autosearch

boolean

Search is performed according to the following rules: for text element when a Enter key is pressed while inputting values and search is performed. For select element when the value changes. The search parameter in grid is set to true and ajax call is made.

true

beforeSearch

function

event which fires before a search. It is called before triggering the grid. If the event return true triggering does not occur. In this case you can construct your own search parameters and trigger the grid to search the data. Any other return value causes triggering.

null

afterSearch

function

event which fires after a search

null

beforeClear

function

event which fires before clearing entered values (i.e.,clearToolbar is activated).It is called before clearing the data from search elements. If the event return true triggering does not occur. In this case you can construct your own search parameters and trigger the grid. Any other return value causes triggering.

null

afterClear

function

event which fires after clearing entered values (i.e., clearToolbar activated)

null

searchOnEnter

boolean

Determines how the search should be applied. If this option is true see the autosearch option. If the option is false then the search is performed immediately when the user pres some character

true

stringResult

boolean

Determines how to post the data on which we perform searching. When the this option is false the posted data is in key:value pair, if the option is true, the posted data is equal on those as in searchGrid method

true

groupOp

string

This option is valid only if the option stringReasult is set to true and determines the group operation. Can have values AND and OR.

AND

When we create toolbar search with filterToolbar we create additional methods as follow. The method should be called with JavaScript code.

Method

Description

triggerToolbar

When this method is called a search is performed, the search parameter in grid becomes true and ajax call is made to the server

clearToolbar

When called clear the search values send a request with search option set to false and set the default one if available

toggleToolbar

Toggeles the toolbar with the search elements

Using the additional methods

The methods listed above should be used this way:

...
var sgrid = $("#grid")[0];
sgrid.triggerToolbar();
...

This will perform a search dynamically.
